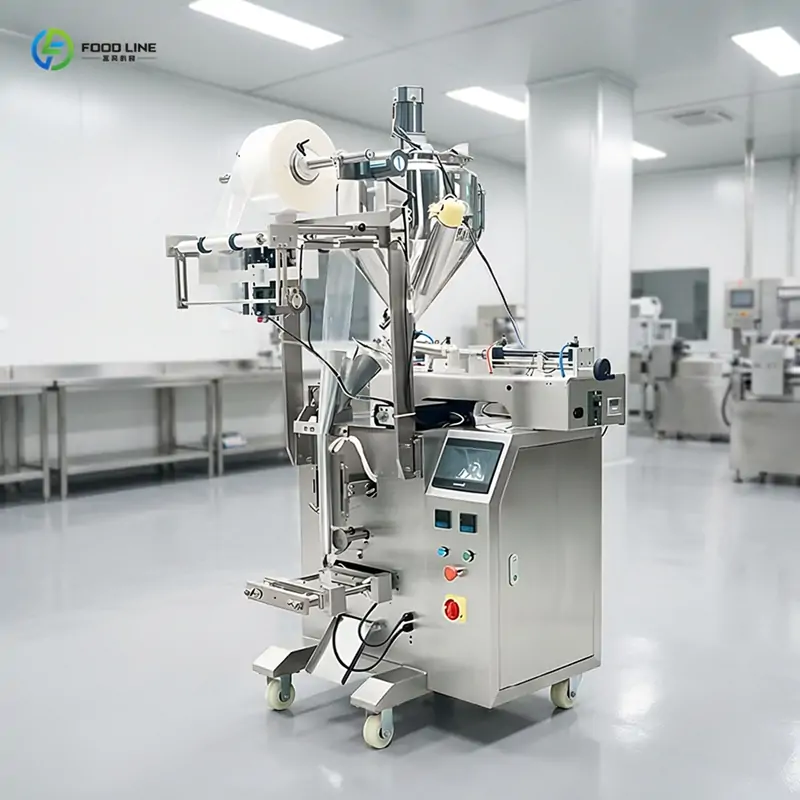

Automatic VFFS Packing Machine
Vertical form-fill-seal machine for granules, snacks, powder and other food products.
High-speed forming, filling and sealing from roll film.
- Bag style: Center-seal bag / 3-side seal / 4-side seal
- Packing speed: 25～40 bags/min
- Bag Weight: 5–100 g
Tell us your product, size and required output. We’ll recommend the right configuration.
Automatic VFFS Packing Machine Specifications
| Model | 240BF | 240F (3 Sides Sealing) | 240F (4 Sides Sealing) |
| Sealing Type | Back Sealing | Three-side Sealing | Four-side Sealing |
| Measuring | Short Screw | ||
| Packing Range | 5-100g | ||
| Packing Speed | 25-40 Bags/Min | ||
| Bag Size | L: 45-160mm, W: 30-115mm | L: 45-160mm, W: 30-120mm | L: 45-160mm, W: 30-120mm |
| Film Width/Thickness | Max: 240mm, 0.05-0.1mm | ||
| Cutting Type | Straight cutting / Zigzag cutting / Round cutting / Die-cut | ||
| Power Supply | 220V/380V/50Hz/60Hz/1350W | ||
| Air Supply | 0.8 MPA 0.8m3/min | ||
| Dimension | 900*800*1800 mm | ||
| Weight | 180 kg | ||
Single Lane Vertical Packing Machine
Designed for Reliable Automatic Packaging
Foodline vertical packaging machine is a highly automated packaging device that utilizes a roll of film to complete the entire process—from bag forming and filling to sealing and cutting—in a top-to-bottom operation.
Working principle:

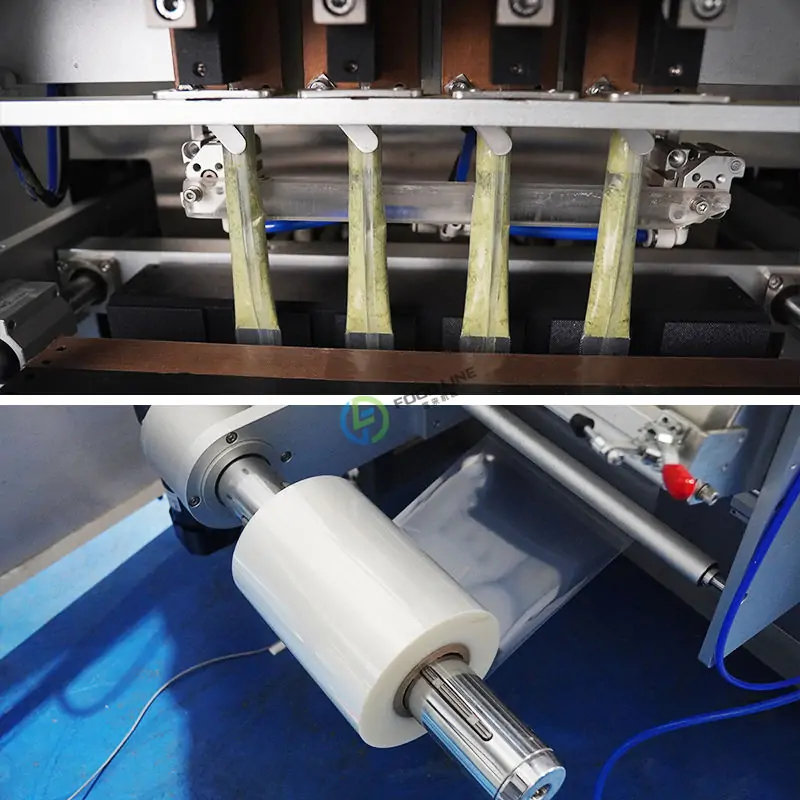

The film is wrapped into a tubular shape by the forming unit and longitudinally sealed; the product drops into the bag from above, followed by transverse sealing and cutting.
One Packing Machine. Multiple Advantages.
This Automatic Vertical Packing Machine is designed for reliable automatic packaging.
Flexibly handles various bag types
No need to purchase multiple machines for different packaging formats. The CY240 series offers three sealing options:
- Back seal: Classic pillow-style bag, suitable for most granules and powders.
- Three-side seal: Flat, crisp, and attractive—ideal for premium small sachets.
- Four-side seal: Offers a distinctive 3D look and superior sealing performance—perfect for high-end products.

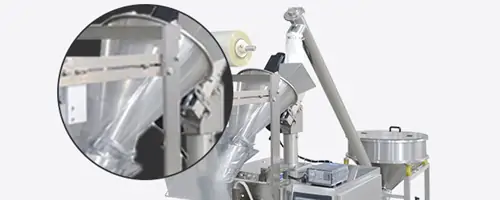

Precise control from 5g to 100g
It utilizes a short-screw feeding system optimized for small-dosage materials, effectively minimizing product residue and ensuring consistent weight per bag.
The packaging speed remains stable at 25–40 bags per minute, balancing efficiency with precision.
Available in various cuts
It supports four types of cuts: straight, serrated, rounded-corner, and custom-shaped.
Whether producing food packaging with easy-tear notches or aesthetically pleasing, rounded-corner samples for personal care products, it handles the task with ease.
What Can It Pack?
Utilizing short-screw metering to balance speed and precision, it is an ideal choice for small and medium-sized factories upgrading to automation.
Common packaging materials may include:
Coffee powder, flour, medicinal powder, additives, seasoning powder
Granulated sugar, salt, seeds, desiccant, instant drink granules
Short noodles, broken tea leaves, small snacks
Others
Not Sure Which Configuration You Need?
Tell us your product and required capacity. Our team will recommend a suitable automatic packing solution.
Frequently Asked Questions
This section provides answers to commonly asked questions, helping users find the information they need quickly and easily.
It can pack many individual solid products, including biscuits, bread, cakes, snacks, candy, chocolate, vegetables, fruits, and various consumer products.
Yes. Printed packaging film can be used when it meets the machine’s film and sealing requirements.
Short-screw metering delivers stable performance for small-dose applications, with standard precision controllable within approximately ±1–2% (depending on material flowability, bulk density, and ambient humidity). For higher precision requirements, the system can be upgraded with a servo-driven screw or a weight-based feedback system.
Four standard cut types are available: straight cut, serrated cut, rounded corner cut, and custom-shaped cut. These can all be achieved by simply changing the cutting tool, without needing to replace the entire machine. Customization based on samples is available for special shapes (such as unique tear-notch designs).
