3-side Seal Powder Packaging
Automatic powder packing machine
Multi-lane three-side seal powder packaging machine—compact footprint, high capacity, and stable precision.
- Bag style: 3-side seal
- Packing speed: 20～40 bags per lane per minute
Tell us your product, size and required output. We’ll recommend the right configuration.
Automatic Powder Sachet Packing Machine Specifications
| Model | 300F | 600F | 900F |
|---|---|---|---|
| Lanes | 2-4 Lanes | 3-10 Lanes | 4-16 Lanes |
| Bag width | 25-75mm | 25-100mm | 25-110mm |
| Film width | Max:300mm | Max:600mm | Max:900mm |
| Sealing Type | 3 side sealing | 3 side sealing | 3 side sealing |
| Packing speed | 20-40Bags/Lane/Min | 20-40Bags/Lane/Min | 20-40Bags/Lane/Min |
| Measuring | Long screw/short screw/short screw with cup | Long screw/short screw/short screw with cup | Long screw/short screw/short screw with cup |
| Cutting Type | Straight cutting/Zig zag cutting/Round cutting/Die-cut | Straight cutting/Zig zag cutting/Round cutting/Die-cut | Straight cutting/Zig zag cutting/Round cutting/Die-cut |
| Bag length | 50mm-180mm | 50mm-180mm | 50mm-180mm |
| Power Supply | 50HZ/220V/3.5kw | 50HZ/220V/5.5kw | 50HZ/220V/7.5kw |
| Dimension(mm) | 1900*1440*3130 | 1860*1750*3200 | 1860*2050*3300 |
| Weight | about 900kg | about 1200kg | about 1500kg |

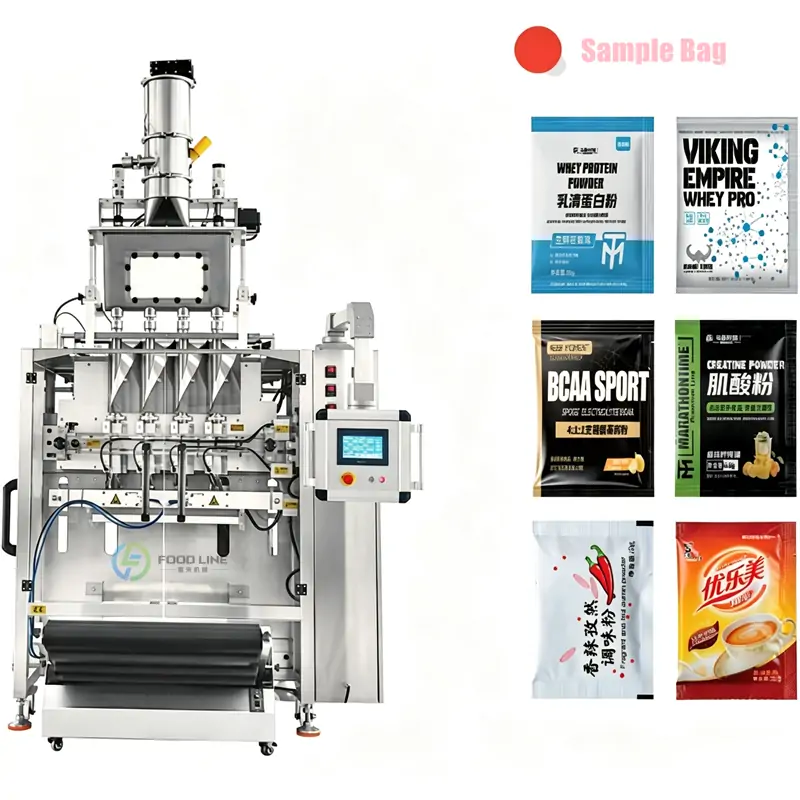

Multi-Lane Three-Side Seal Powder Packaging Machine
One machine = One entire production line—doubling your powder packaging efficiency.
Foodline automatic multi-lane sachet packing machine is suitable for packaging TCM powders, probiotics, milk powder, coffee, facial mask powders, or seasonings. It helps to achieve higher output with a smaller footprint.
- Flexible configuration from 2 to 16 lanes (common models include 4, 6, and 8 lanes).
- Long auger or auger-plus-flicker dosing ensures smooth discharge without clogging.
- Servo-driven with PLC control; filling precision reaches approximately ±0.5%.
- Touchscreen operation with recipe storage makes product switching quick and hassle-free.
- Made of 304 stainless steel. Easy to Clean.
Not Sure Which Configuration You Need?
Tell us your product and required capacity. Our team will recommend a suitable automatic packing solution.
Frequently Asked Questions
This section provides answers to commonly asked questions, helping users find the information they need quickly and easily.
It is suitable for most free-flowing powders, including Traditional Chinese Medicine (TCM) powders, probiotics, meal replacement powders, milk powder, coffee powder, milk tea powder, seasonings, facial mask powders, bath salts, fine chemical powders, and powdered pesticides.
For powders that are prone to dusting or moisture absorption, or have poor flowability, we recommend sending samples for testing; we will then configure the appropriate metering system—such as a long auger, a short auger, or a short auger combined with a material-flicking mechanism—to suit the specific material.
The metering range typically covers 1–70g, with some models expandable to 100ml, depending on the specific auger specifications and bag dimensions.
Yes. The bag length ranges from 50 to 180 mm, and the width from 25 to 110 mm (depending on the machine model). Supported cut styles include straight cut, serrated cut, rounded corner cut, and special-shape cut.
Powder and granules require different metering methods. This machine is primarily designed for powder; if you also need to process small granules, the metering unit must be replaced and re-tested. We recommend clarifying the material characteristics before selecting a model.
