Liquid Filling Machine

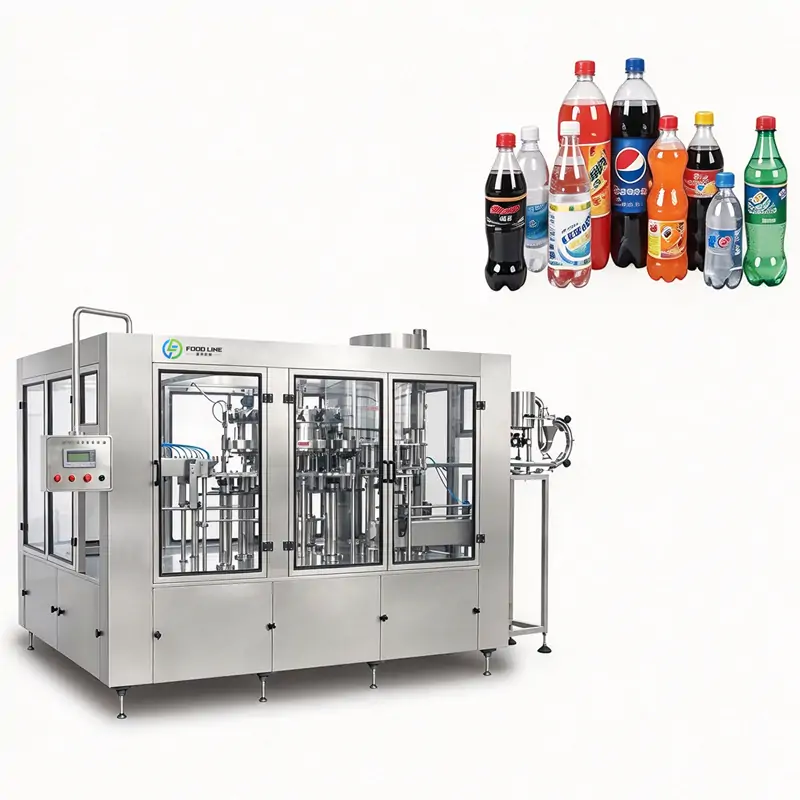

3 in 1 Bottle Filling Machine

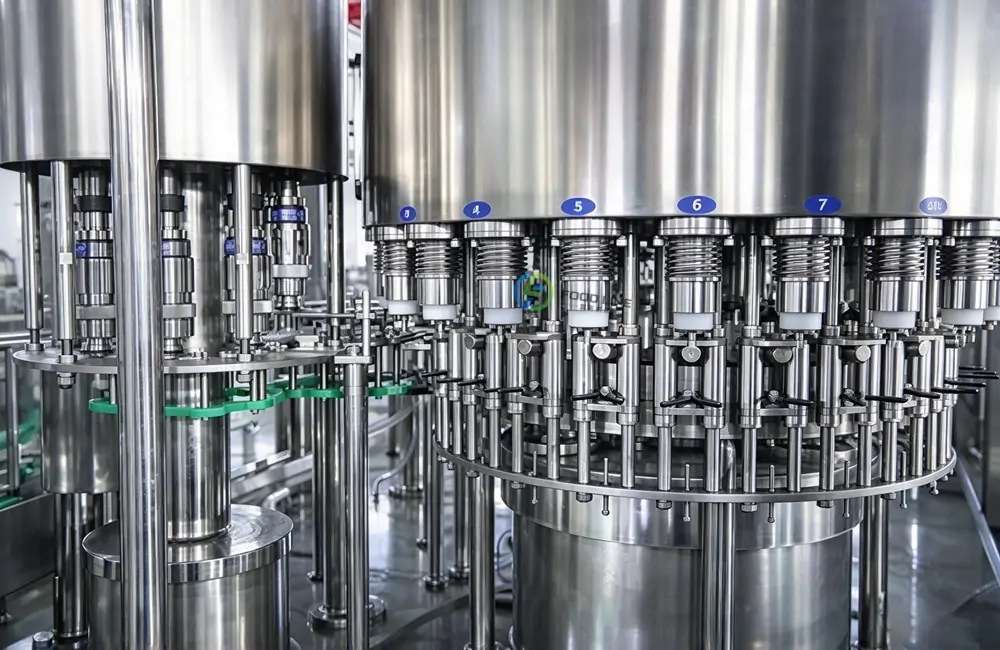

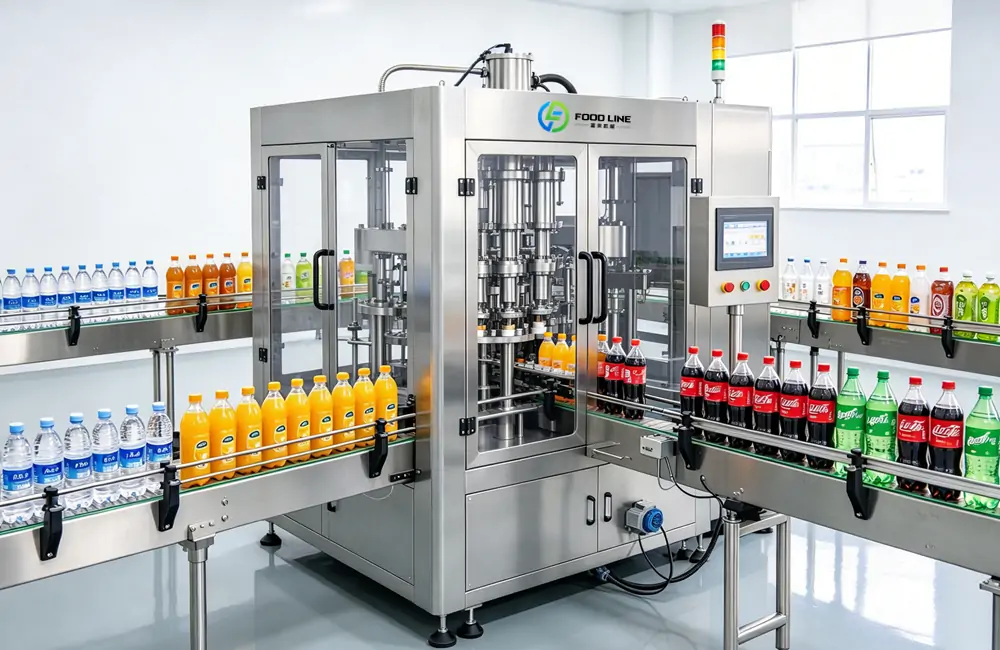

3-in-1 liquid bottling machine for rinsing, filling, and capping bottles in one system.
- Packing speed: 5000～7000 bottles per hour
- Suitable for bottled water, juice, soft drinks, and other liquid beverages.
Tell us your product, size and required output. We’ll recommend the right configuration.
Automatic Rinsing Filling Capping Machine
1 compact machine, reduce labor, improve filling efficiency, keep the bottling process clean
A rinsing filling capping machine integrates three main processes:
- Bottle rinsing
- Liquid filling
- Bottle capping

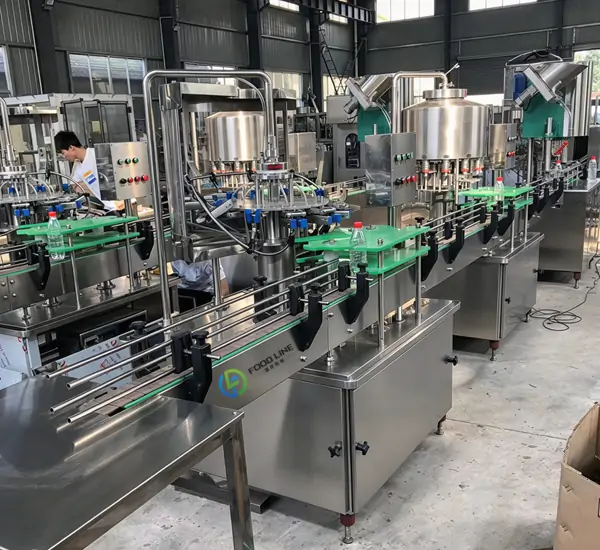

Empty bottles enter the machine automatically. They are rinsed first, filled with the required amount of liquid, and then capped.
The three processes work continuously in one machine. This makes it a practical choice for automatic beverage bottling lines.
3-in-1 Liquid Bottling Machine Working Process
Bottle Feeding → Rinsing → Filling → Capping → Bottle Discharge

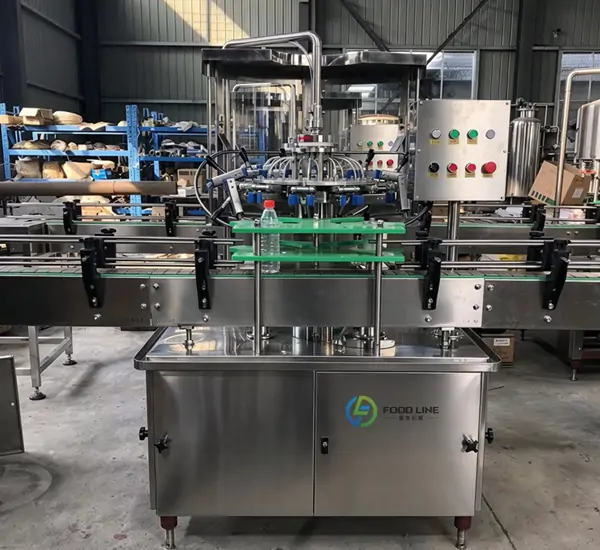

Bottle Rinsing
The bottles are turned upside down and rinsed to remove dust and other particles.

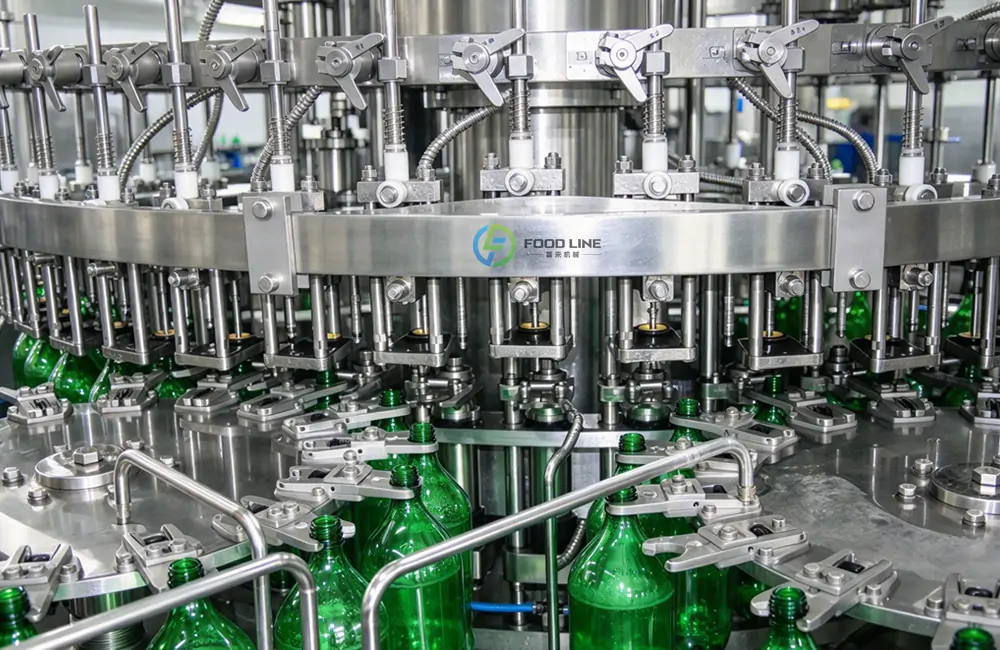

Liquid Filling
The filling system adds a controlled amount of liquid to each bottle. Filling parameters can be adjusted.

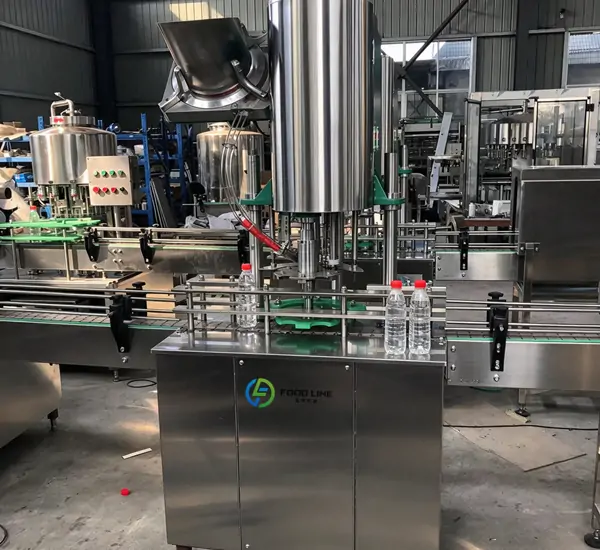

Bottle Capping
The cap is placed and tightened automatically. This reduces manual work and helps provide a consistent seal.
Automatic Powder Packing Machine Specifications
| Model | Stations (Rinse/Fill/Cap) | Rated Capacity (BPH) | Suitable Liquid | Filling Method / Temperature | Main Motor Power |
| XGF18-18-6 | 18 / 18 / 6 | 5,000–7,000 (500ml) | Purified water, mineral water | Ambient filling | 1.5 kW |
| XGF24-24-6 | 24 / 24 / 6 | 10,000–12,000 (500ml) | Purified water, mineral water | Ambient filling | 3.0 kW |

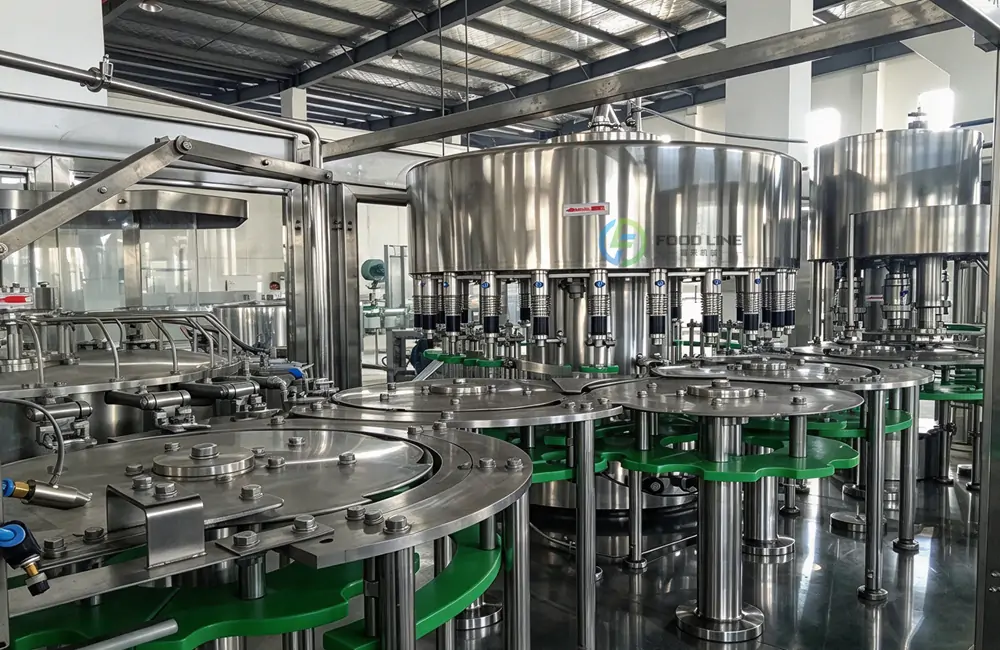

| DXGF24-24-6 | 24 / 24 / 6 | 6,000–8,000 (500ml) | Carbonated drinks | Isobaric filling, ≤5°C | 3.0 kW |
| RXGF18-18-6 | 18 / 18 / 6 | 5,000 (500ml) | Juice, tea drinks | Hot filling, ≤88°C | 3.0 kW |
| JXGF72-72-18 | 72 / 72 / 18 | Approx. 30,000 (500ml) | Mineral water, purified water | Ambient filling | / |
Not Sure Which Configuration You Need?
Tell us your product and required capacity. Our team will recommend a suitable automatic packing solution.
Automatic Liquid Filling Machine Applications
Wide range of industries | Flexible for types of liquid beverages
The 3-in-1 liquid bottling machine can handle many types of liquid beverages.
- Bottled Water: Drinking water, Purified water, Mineral water, etc.
- Juice: Fruit juice, Vegetable juice, Juice drinks, Fruit-flavored beverages
- Soft Drinks: Carbonated beverages, Soda, Flavored drinks, Functional beverages
- Other Liquid Beverages
Request a Quote Today
Contact us for machine specifications, configuration, and quotation.
Features of the 3-in-1 Liquid Bottling Machine
Common bottle sizes include: 250 ml, 330 ml, 500 ml, 750 ml, 1 L, 1.5 L, 2L, 5L
Three Processes in One Machine
Rinsing, filling, and capping are integrated into one machine. This reduces equipment connections and saves production space.
Automatic Operation
The machine performs bottle rinsing, filling, and capping automatically. It reduces manual handling and helps improve production efficiency.
Stable Filling
The filling system is designed to provide consistent filling results. Different filling methods can be selected for different liquid products.
Suitable for Different Bottles
It is suitable for different bottle sizes and shapes. You should confirm the bottle specifications before production.
Hygienic Design
The machine uses high-quality stainless steel materials for applications that require high hygiene standards.
Easy to Operate
Automatic control system. Operators can monitor and adjust important production parameters from the control panel.

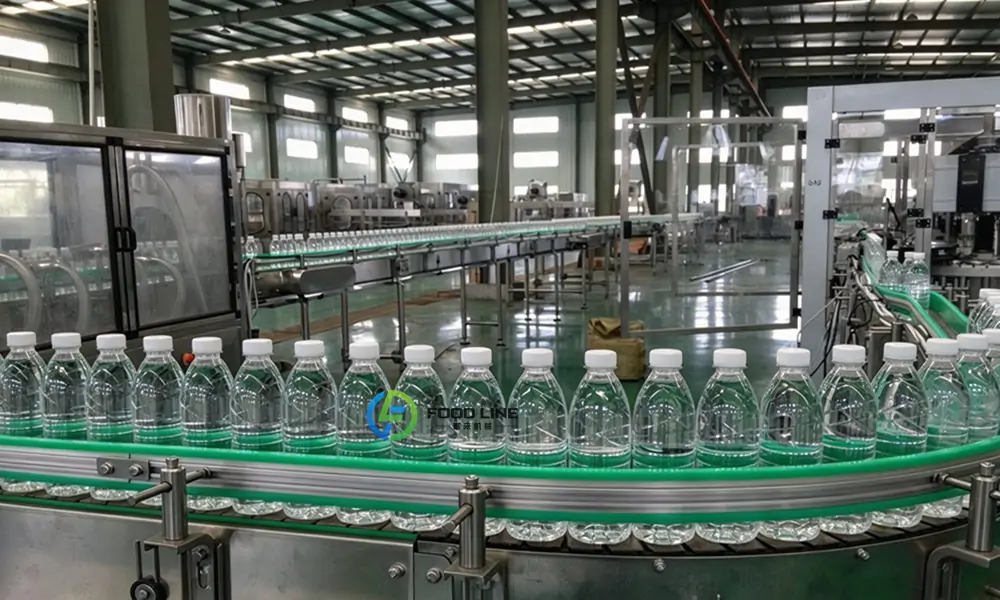

Complete Beverage Bottling Line
Foodline provides customized filling and packaging equipment for different products and industries.
We can integrate the liquid bottle filling machine into a complete beverage production line.
A typical line may include:
Water Treatment → Beverage Preparation → Bottle Blowing → Rinsing Filling Capping → Labeling → Date Coding → Packaging
Please tell your product and production process, we can customize filling solutions for you.
