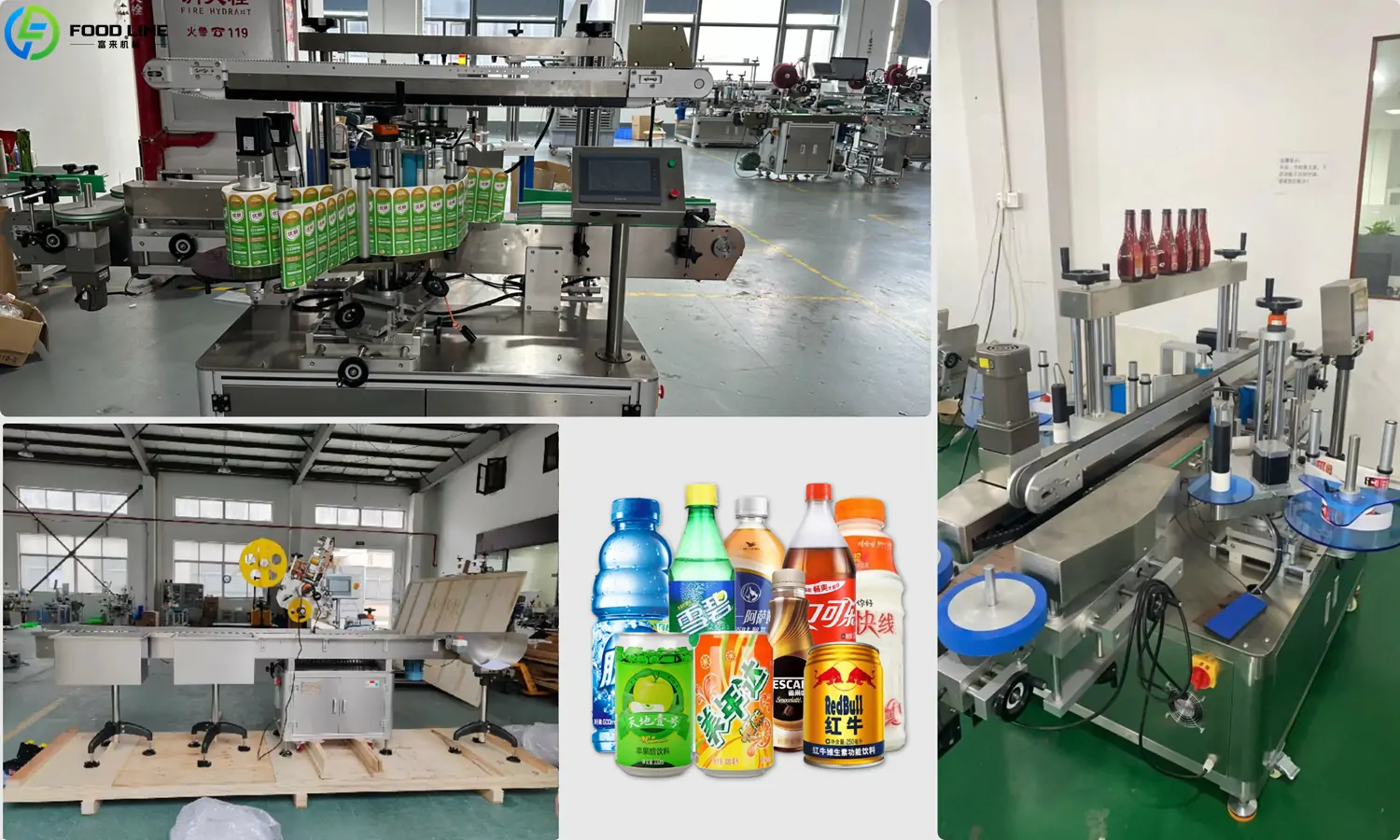

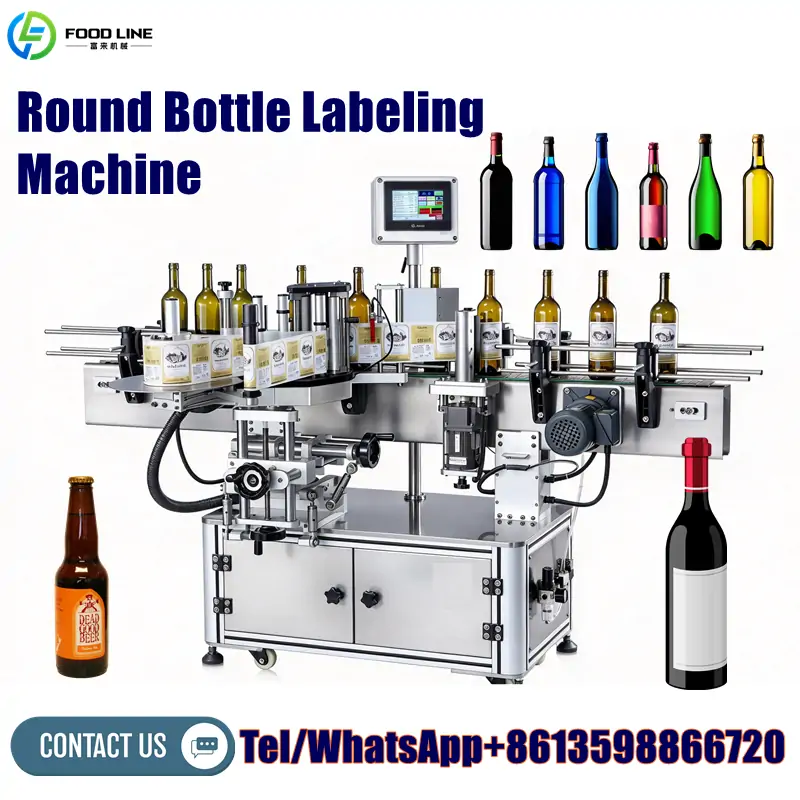

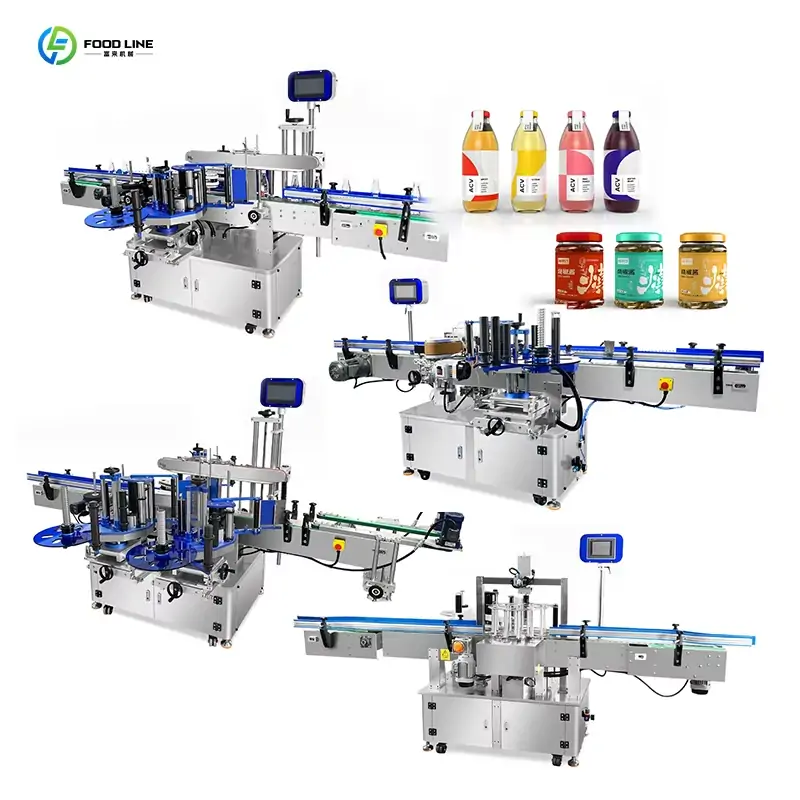

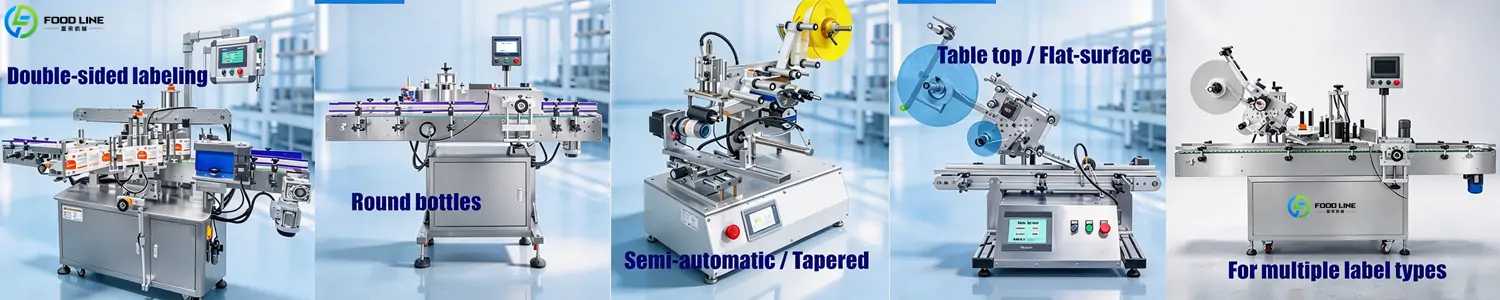

Foodline bottle sticker labeling machine applies self-adhesive labels to bottles quickly and accurately. It is suitable for plastic bottles, glass bottles, and other containers. It applies self-adhesive labels for branding, product identification, ingredient information, and barcodes.
Contact Foodline today to find the right bottle labeling machine for your business. Foodline can also help evaluate equipment combinations for filling, capping, labeling, coding, and packaging processes.
Technical Parameters of Bottle Sticker Labeling Machine
| Model No. | FL-7000-4C |
| Labeling Speed | 15-20P/min（Customizable） |
| Labeling Accuracy | ±0.5-1.0mm |
| Label Size | 745(L)*880(W)*1720(H)MM(other size, custom made) |
| Bottle Size | Φ40-Φ100mm; (H)30-200mm (other size, custom made) |
| Label Roll Inner Diameter | Φ76mm |
| Label Roll Outer Diameter | Max. Φ320mm |
| Dimension | (L)2000*(W)1050*(H)1600(mm) |
| Air Source | 0.4-0.6Mpa |
| Power Source | AC220V; 50Hz/60Hz; 1500W |
| Label Type | Self-adhesive label (Transparent label need clarify) |
| Display | Touch Screen + PLC control |
How Does the Bottle Labeling Machine Work?
- Bottle Feeding: Empty bottles enter the conveyor manually or through an automatic feeding system.
- Bottle Separation: The system spaces bottles evenly for accurate label application.
- Label Detection: Sensors detect the bottle position and control label feeding.
- Label Application: The machine applies self-adhesive labels to the required bottle surface.
- Label Pressing: Rollers or pressing components smooth the labels and help reduce wrinkles and bubbles.
- Finished Product Output: Labeled bottles move to the next stage for coding, inspection, or packaging.
Features of the Foodline Bottle Sticker Labeling Machine
1. Premium Electrical Components
Equipped with a 750W Yaskawa servo motor, Siemens PLC, Danfoss VFD, SICK and Keyence sensors, and a bilingual Chinese-English HMI.
2. High Labeling Precision
Offers 0.01 m/min label-feeding speed adjustment. PLC-based closed-loop control ensures accurate label feeding and consistent positioning.
3. High-Speed Performance
Label speed is adjustable from 0.5 to 40 m/min. Photoelectric sensors detect bottles for fast, synchronized labeling.
4. Smooth Label Application
Dual pressure rollers, a tension control system, and sponge rollers help reduce wrinkles, air bubbles, and label waste.
5. Quick Changeover
Dual-coordinate guide rails and an eight-axis adjustable labeling head support different bottle sizes, labeling angles, and label materials.
6. Stable Operation
A powerful AC motor, high-performance VFD, and reinforced frame ensure smooth conveying and reliable performance.
Get a Quote for Your Bottle Sticker Labeling Machine
Looking for an automatic bottle labeling machine for your production line? Foodline Machinery was founded in 2005. We have more than 20 years of experience in manufacturing labeling machines. We provide kinds of packaging machines, including flour packing machines, granules packing machines, VFFS packaging machines, automatic water bottle filling machines, 3-in-1 bottle filling machines, automatic labeling machines, etc.
